Thermalright Unveils Phantom Spirit 120 Digital CPU Cooler Series

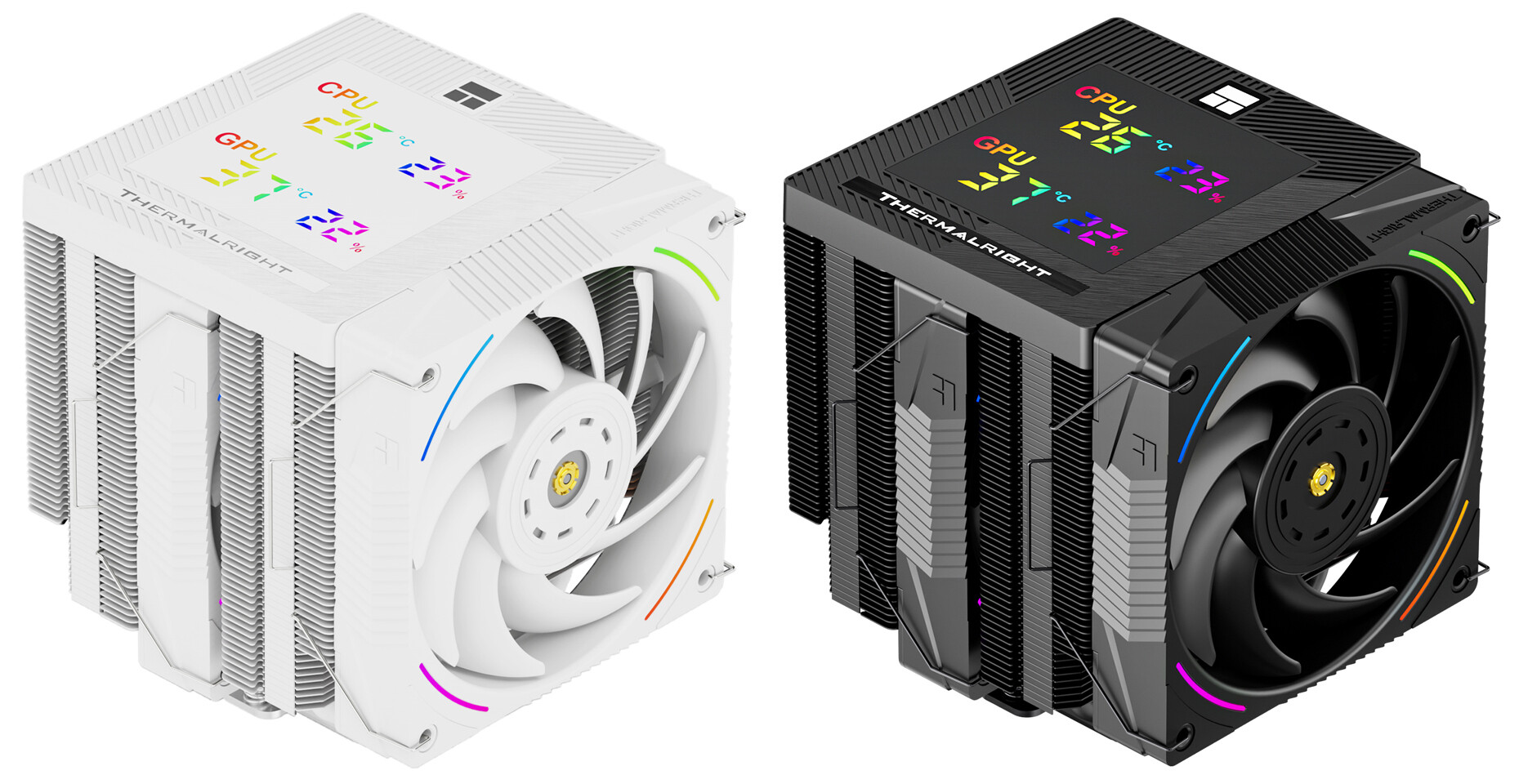

Thermalright has announced the launch of its latest high-performance air CPU cooler, the Phantom Spirit 120 Digital. This premium cooler is available in two distinct versions: the Phantom Spirit 120 Digital SNOW, featuring a sleek white finish, and the Phantom Spirit 120 Digital EVO, presented in classic black. Both models are engineered to deliver exceptional cooling for demanding systems, supporting a thermal design power (TDP) of up to 275W.
Broad Compatibility and Advanced Cooling Design
The Phantom Spirit 120 Digital is designed for wide compatibility, supporting Intel LGA115X, LGA1200, LGA1700, and LGA1851 sockets, as well as AMD AM4 and AM5 platforms. At the core of its cooling performance is a dual fin-stack heatsink structure, utilizing seven 6 mm-thick nickel-plated copper heatpipes. These heatpipes make indirect contact with the CPU via a nickel-plated C1100 pure copper base, efficiently transferring heat through two robust aluminum fin stacks.
Innovative ARGB Digital Top Cover
One of the standout features of the Phantom Spirit 120 Digital is its magnetically attached ARGB digital top cover. This innovative component not only enhances aesthetics with customizable lighting but also provides real-time monitoring of processor temperature, CPU load, graphics card temperature, and GPU load. The digital interface supports both motherboard 9-pin and USB port connections, ensuring flexible data transmission and compatibility with a variety of system configurations.
High-Performance TL-K12W Fans
Included with the cooler are two TL-K12W 120 mm fans, each equipped with advanced S-FDB V2 bearings for durability and quiet operation. These fans operate at speeds up to 2,150 RPM, delivering a maximum airflow of 69 CFM and a static pressure of 2.87 mm H₂O, all while maintaining a low noise level of just 27 dBA. Both fans feature 4-pin PWM connectors for precise speed control and 3-pin 5V ARGB connectors for synchronized lighting effects. The four-sided inner frame design further enhances the ARGB illumination, adding a striking visual element to any build.
Dimensions, Pricing, and Warranty

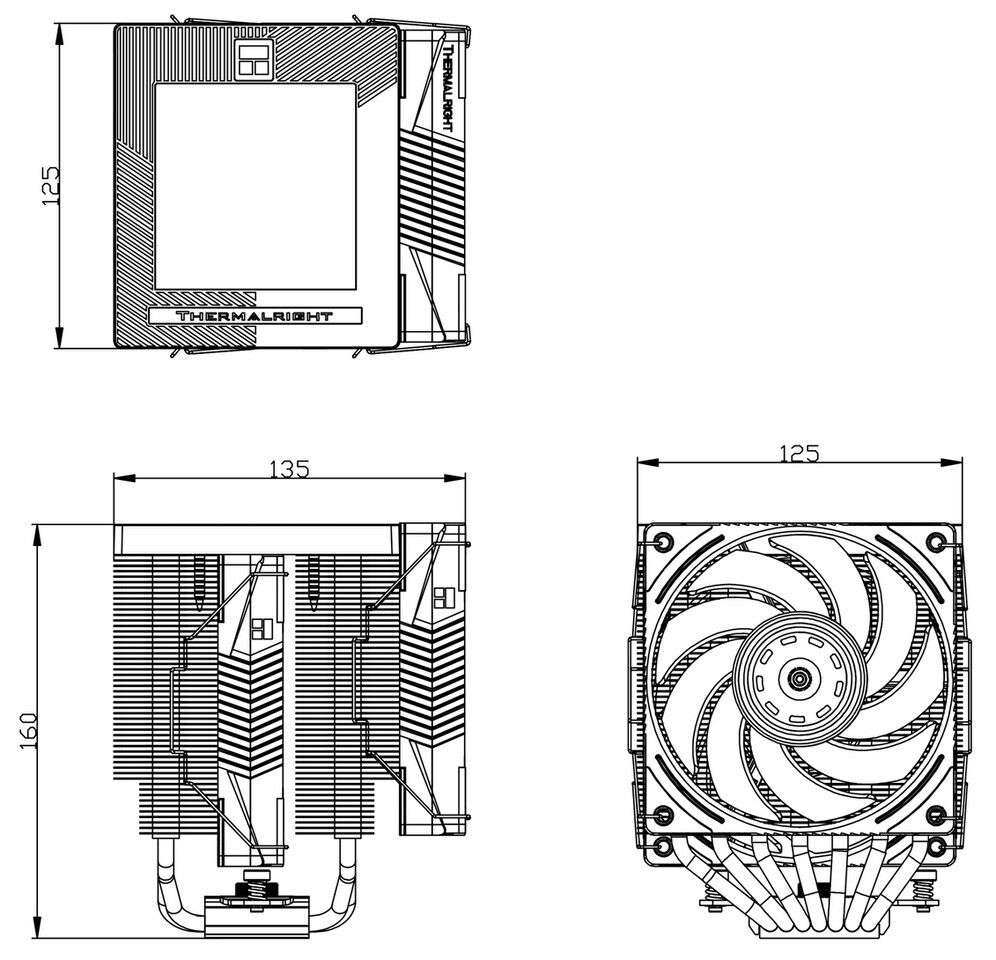

With both fans installed, the Phantom Spirit 120 Digital measures 125 mm in length, 135 mm in width, and 160 mm in height, making it suitable for a wide range of mid-tower and full-tower cases. According to industry sources, the cooler is priced at approximately US$49 (349 yuan) and comes with a 3-year warranty. Store availability details are expected to be announced soon.
Phantom Spirit 120 Digital Specifications
- Heatsink Dimensions: 125 mm (L) x 135 mm (W) x 160 mm (H)
- Heatpipes: 7 x 6 mm nickel-plated copper
- Copper Base: C1100 pure copper, nickel-plated
- Digital Connector: Motherboard 9-pin / USB port
- Fan Dimensions: 120 mm x 120 mm x 25 mm
- Fan Speed: Up to 2,150 RPM ±10%
- Noise Level: 27 dBA (max)
- Airflow: 69 CFM (max)
- Air Pressure: 2.87 mm H₂O (max)
- Fan Connector: 4-pin PWM
- ARGB Connector: 3-pin 5V
- Bearing Type: S-FDB V2
The Thermalright Phantom Spirit 120 Digital series brings together advanced cooling technology, real-time system monitoring, and striking ARGB aesthetics, making it a compelling choice for PC enthusiasts and gamers seeking reliable and stylish CPU cooling solutions.
